Cat6A F/UTP 186PS Outdoor Shielded Ethernet Cable

Products > Cat6A > Cat6A F/UTP 186PS Outdoor Shielded Ethernet Cable

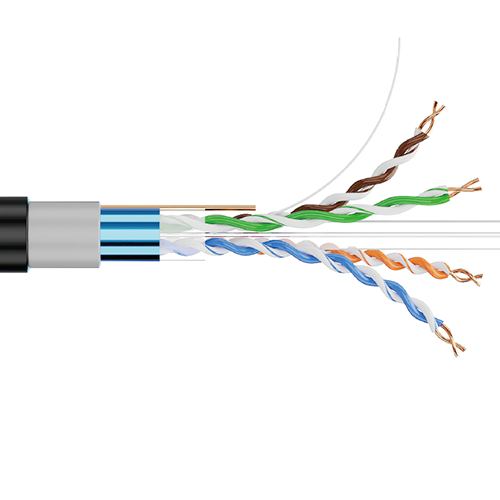

Cat6A F/UTP 186PS Outdoor Shielded Ethernet Cable

    • 1
    • 2
    • 3



Product Highlights

● Comes with PE waterpoof layer ideal for outdoor wet environment wiring

● Proven shield technology to improve RFI, EMI and alien crosstalk performance

● CE, RoHS, FCC and REACH compliant

● Special star filler reduces crosstalk and maintains impedance stability

● TIA568C.2 compliant and up to 1Gbps data transmission rate



General Specifications
Product NumberHKN-186PS
ANSI/TIA Category6A
Cable TypeF/UTP
Conductor TypeSolid
Conductors Quantity8

Pairs Quantity

4
Standards

ANSI/TIA-568B  ｜ ISO/IEC 11801 ｜ IEC61156  ｜ IEC61034  ｜ EN50399  ｜ IEC60332-1  ｜ IEC60332-3  ｜ IEC60754


Dimensions
Diameter Over Jacket7.2 ± 0.2mm
Conductor Gauge24 AWG

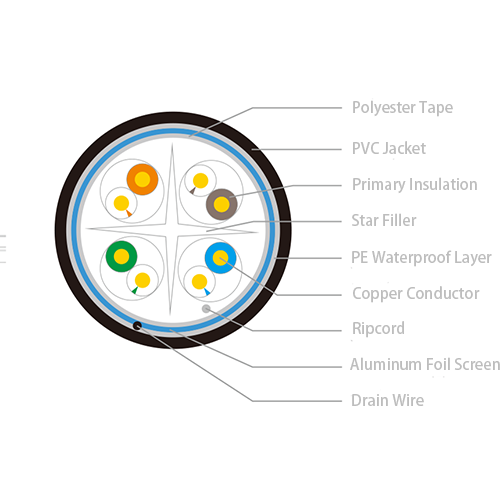

Material Specifications

Conductor MaterialOFC
Insulation MaterialHDPE
Jacket MaterialPVC
Jacket ColorsBlack (BK)
ScreenOverall Aluminum  Foil Screen


Packaging
Reels1,000 feet/300m


Electrical Specifications
Characteristic Impedance100±15Ω (1-500MHz)
DC Resistance≤9.5Ω/100M
Insulation Resistance≥5000MΩ/KM
Mutual Capacitance≤5.6nF/100M
Nominal Velocity of Propagation (NVP)69%


Physical  Specifications
Static Bending Radius≥8 x Overall Diameter
Dynamic Bending Radius≥8 x Overall Diameter
Maximum Pulling Load600N
Installation Temperature-15℃ to +70℃ (+5℉ to +158℉)
