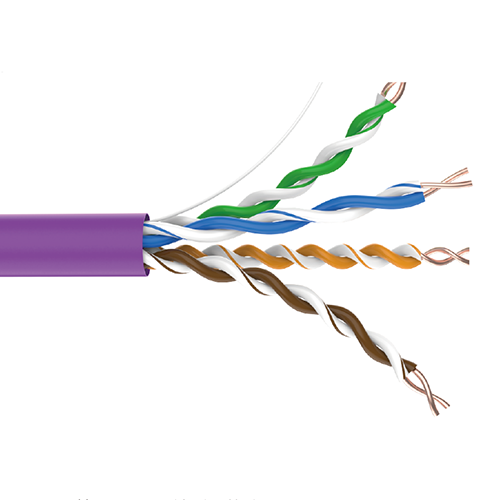

Cat5e UTP LSZH5E Ethernet Cable

Product Highlights

● LSZH (Low Smoke, Zero Halogen) jacket produces very low levels of smoke and toxic fume and no acid gases, GB/T18380 compliant

● Light transmittance ≥ 60%

● CE, RoHS, FCC and REACH compliant

● Up to 1000M Bandwidth and up to 350MHz frequency


Because of the low smoke and toxicity benefits, LSZH cables are often chosen for a multitude of applications. These include:

  • Railway and subway stations and cars, buses and bus stations, airplanes and airports, other mass transit facilities

  • Any public underground or poorly ventilated location

  • Public entertainment and sports facilities

  • Apartment buildings and hotels

  • Hospitals

  • Computer/data centers

General Specifications
Product NumberHKN-LSZH5E
ANSI/TIA Category5e
Cable TypeUTP
Conductor TypeSolid
Conductors Quantity8

Pairs Quantity

StandardsANSI/TIA-568B  | ISO/IEC 11801 | IEC61156  | IEC61034  | EN50399  | IEC60332-1  | IEC60332-3  | IEC60754

Diameter Over Jacket5.4 ± 0.2mm
Conductor Gauge24 AWG

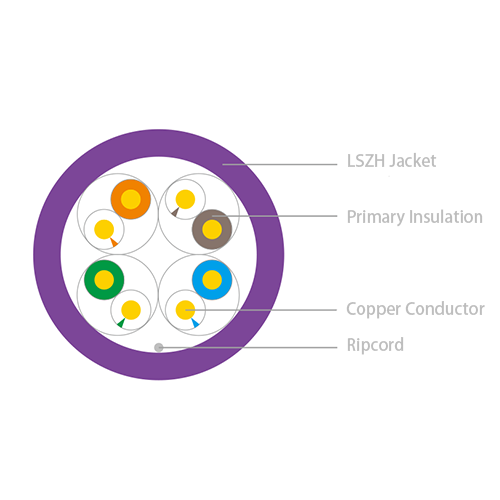

Material Specifications

Conductor MaterialOFC
Insulation MaterialHDPE
Jacket MaterialLSZH
Jacket ColorsPurple

Reels1,000 feet/300m

Electrical Specifications
Characteristic Impedance100±15Ω (1-500MHz)
DC Resistance≤9.5Ω/100M
Insulation Resistance≥5000MΩ/KM
Mutual Capacitance≤5.6nF/100M
Nominal Velocity of Propagation (NVP)69%

Physical  Specifications
Static Bending Radius≥8 x Overall Diameter
Dynamic Bending Radius≥8 x Overall Diameter
Maximum Pulling Load600N
Installation Temperature-30℃ to +105℃ (-22℉ to +221℉)
