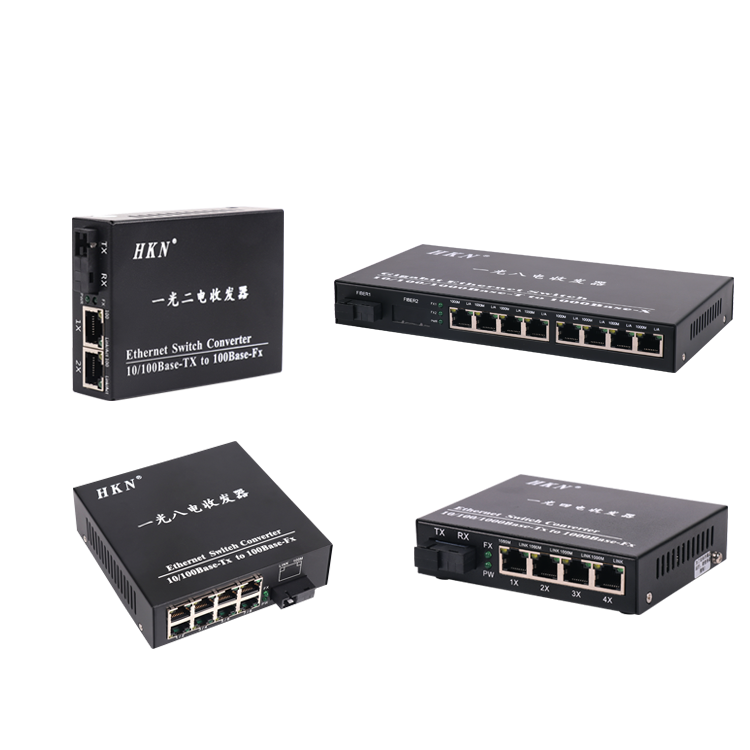

多口光纤收发器100/1000M
多口光纤收发器100/1000M
| Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3ab 1000Base-T IEEE802.3z 10GBase-SX/LX IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree IEEE802.1q VLAN FCC Part15 ClassA and CE Mark compliant |
| Wavelength | ≤1550nm |
| Transmission Distance | 20KM |
| Transmission Bandwidth | EP: 10/100/1000Mbps, FP: 100/1000Mbps |
| Ethernet Port (EP) | RJ45, Full-Duplex and Half-Duplex auto-negotiation; Support shielded or unshielded Cat5 or higher level cable within 100m |
| Fiber Port (FP) | SC, Full-Duplex |
| MTBF | >50,000 Hours |
| Flow Control | Full-Duplex based on IEEE802.3x and half-Duplex based on backpressure |
| LED Indicator | PWR, FX100/FX1000, FX Link/Act, FDX, TX100/TX1000, TX Link/Act |
| Power Supply | DC 5V/1A |
| Operating Temp | -20℃ - 50℃ |
| Working Temp | -35℃ - 85℃ |
| Storage Temp | -40℃ - 85℃ |
| Storage Humidity | 5% - 90%(non-condensing) |
| Dimension | - |
| Color | Champagne Gold /Black |
| Shell Material | Enhanced Tinplate |
| Model variants | 1 FP - 2 EP; 1 FP - 4 EP; 1 FP - 8 EP; 2 FP - 4 EP; 4 FP - 2 EP; |
